Beam trolleys or manual push trolleys are used for moving loads on I beams of H beams. The trolley is fitted onto the beam using opposing threads or a washer set up. The trolley is free to roll along the underside of the beam when fitted. A chain sling, chain block, lever hoist, nylon web sling or wire rope sling can be suspended from the manual push trolley from its suspension point. Beam trolleys are available from 500kg to 5000kg.
Beam Push Trolley
Description
Beam push trolley or manual push trolleys are used for moving loads on I beams of H beams. The trolley is fitted onto the beam using opposing threads or a washer set up. The trolley is free to roll along the underside of the beam when fitted. A chain sling, chain block, lever hoist, nylon web sling or wire rope sling can be suspended from the manual push trolley from its suspension point. Beam push trolleys are available from 500kg to 5000kg. Part of our Lifting Chains & Lifting Equipment range.
</tr

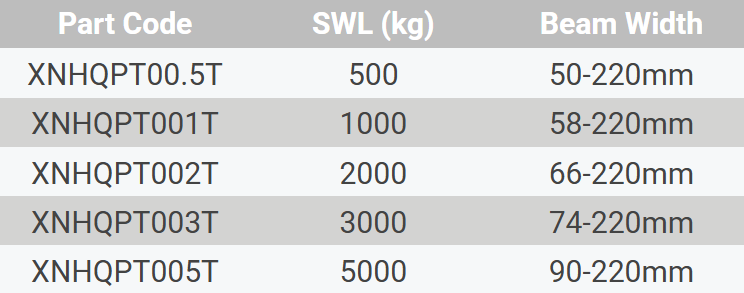

| Size KG | Suit Beam Flange |
|---|---|
| 500kg | 50-220mm |
| 1000kg | 58-220mm |
| 2000kg | 66-220mm |
| 3000kg | 74-220mm |
| 5000kg | 90 – 220mm |
Detail
- Simple robust trolleys.
- Suitable for all I Beams and H-beams.
- Flanged wheels
- Easily adjustable to suit any size beam.
Optional Extras.
